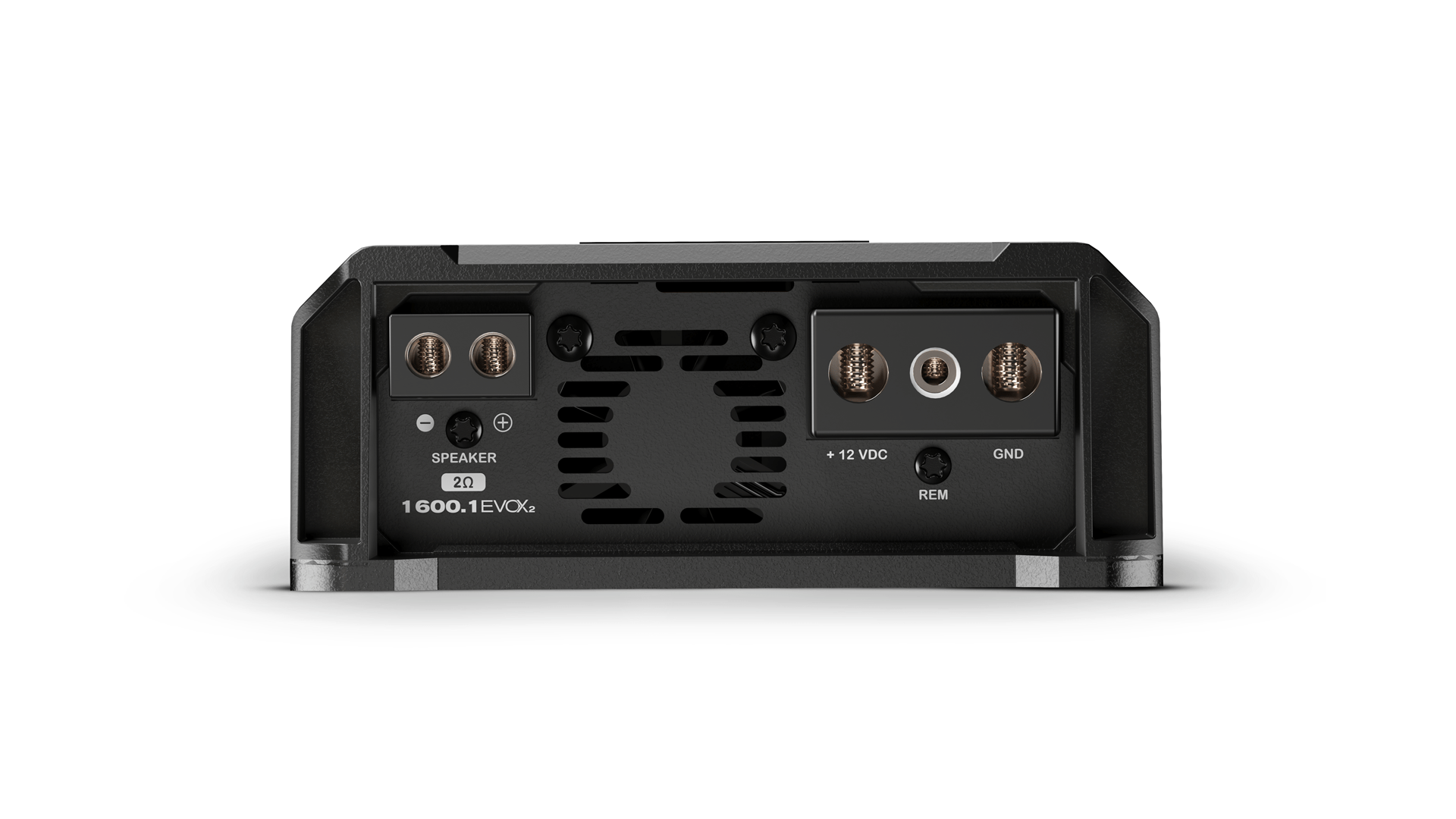

SounDigital 1600.1 EVOX2 Amplifier

The 1600.1 EVOX2 is a compact, modern amplifier that delivers 1600W RMS of power over 1 channel.

The EVO X Line brings the latest technology in a compact design with the highest quality components. From a pioneering technology, SounDigital brought to car audio amplifiers something that had not been explored yet. The thermal coupling through RTGP system.

The exclusive RTGP system (Thermal Recovery for power generation) assures SounDigital products both greater thermal efficiency and robustness with higher stability.

The technology used in the SounDigital products brings both high performance and power in a small chassis, providing installation solutions for vehicles with limited space and finishing. Available in 1 Ohm and 2 Ohms.

Specifications / Information:

• 1600.1 EVOX2 – 1 OHM

  Power @ 1Ω: 1 X 1600W RMS
  Power @ 2Ω: 1 X 1056W RMS
  Power @ 4Ω: 1 X 697W RMS

• 1600.1 EVOX2 – 2 OHMS

  Power @ 1Ω: N/A
  Power @ 2Ω: 1 X 1600W RMS
  Power @ 4Ω: 1 X 1056W RMS

• Frequency Response (-3dB): 5Hz – 25kHz

• Subsonic Filter (12dB/octave): 5Hz ~ 40Hz

• Low Pass Filter (12dB/octave): 50Hz ~ 500Hz

• Operating Voltage: 8V ~ 16V

• SNR: 94dB

• Input Sensitivity (RCA): 0.2V ~ 2.5V

• Current Draw (music): 1Ω: 65A / 2Ω: 62A

• Current Draw (max): 1Ω: 125A / 2Ω: 115A

• Total Efficiency: 89%

• Damping Factor: >3000

• Power Cable: 16mm² (5 AWG)

• Speaker Cable: 2Ω: 2 x 4mm² (14 AWG)
  4Ω: 2 x 2.5mm² (13 AWG)

• Recommended Fuse (Music): 80A

• Recommended Battery (minimum): 80Ah
