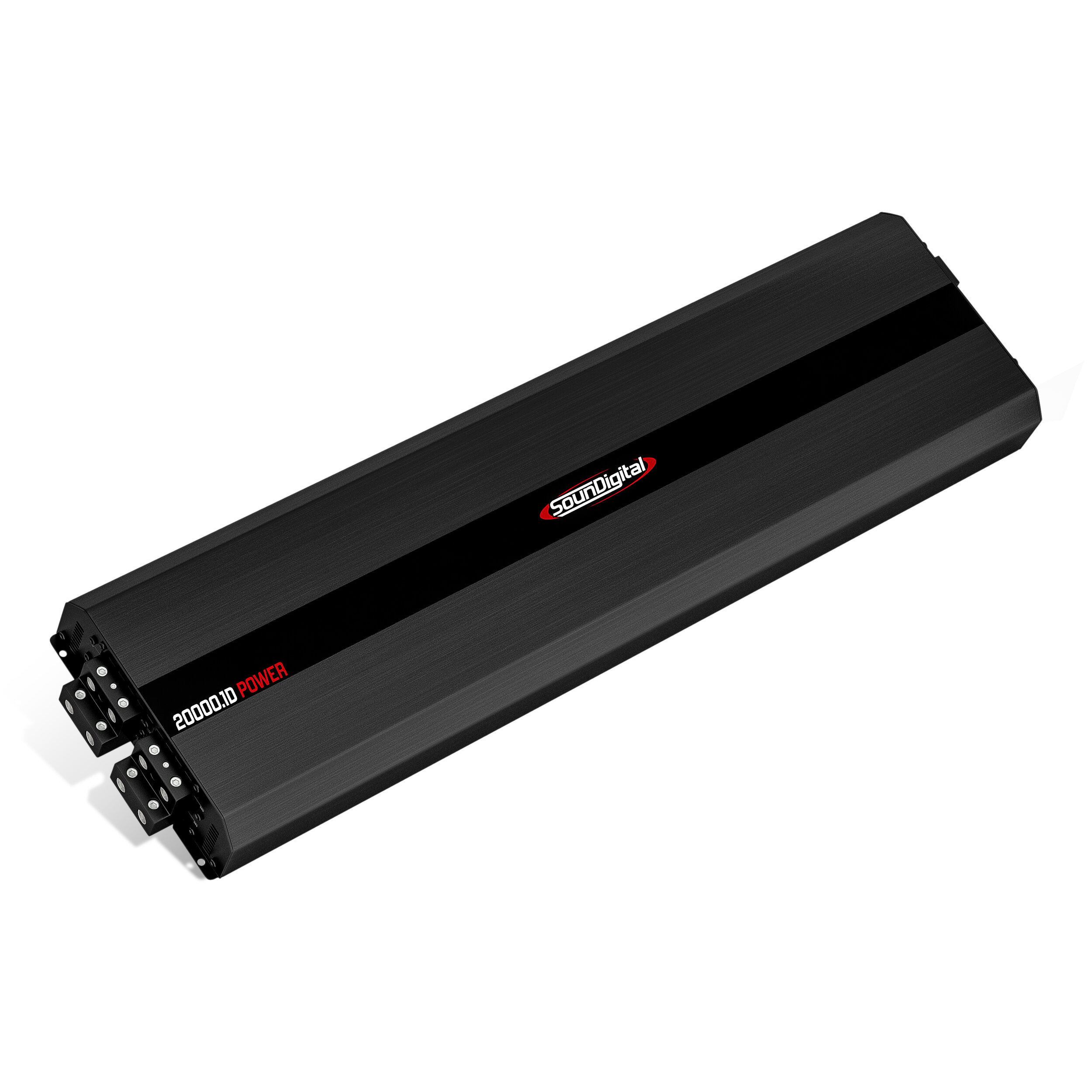

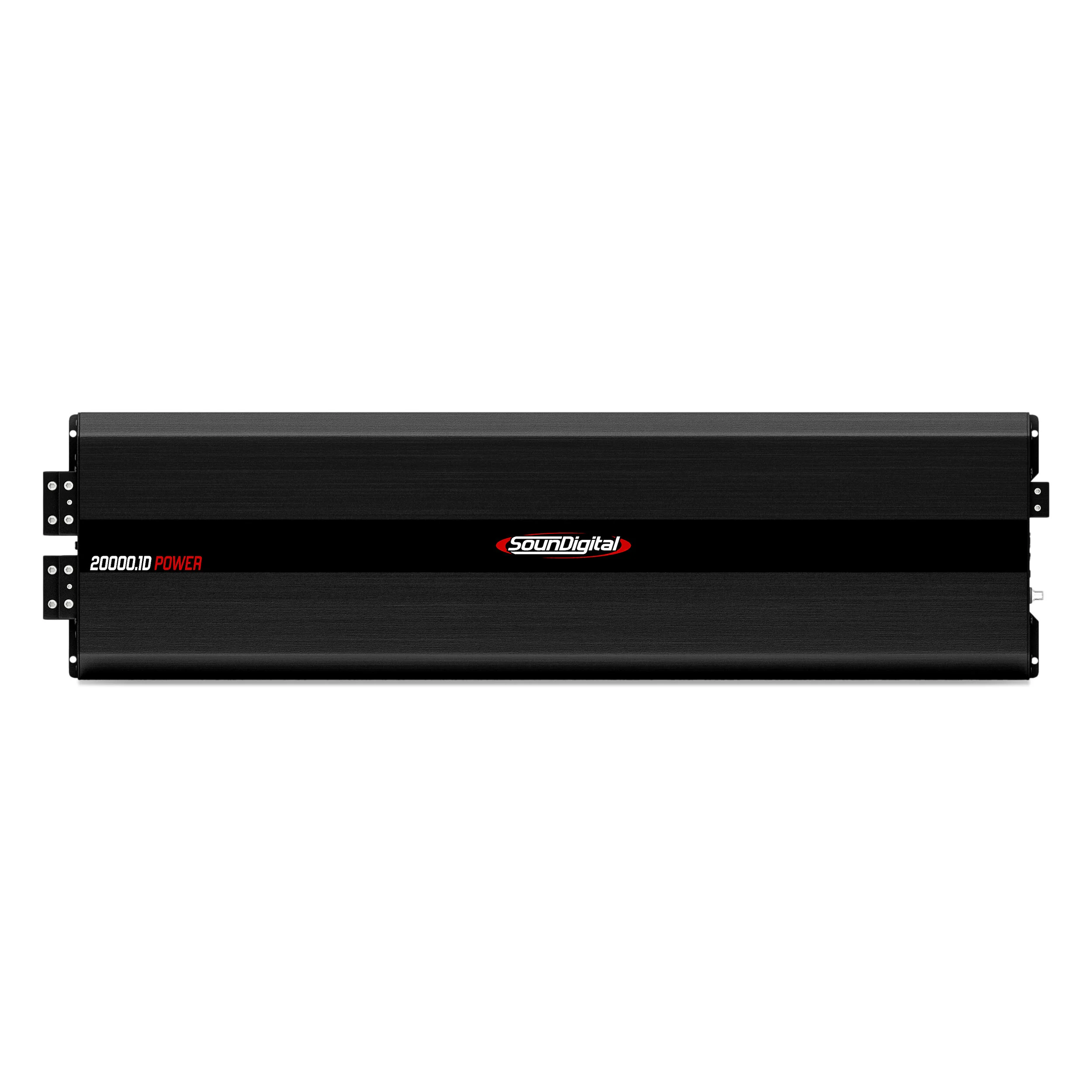

SounDigital 20000.1D Power Amplifier
Description
Brushed aluminium finish on all the Power Line amplifiers give a stylish finish to this power-house.
Specifications / Information:
1 Ohm Version
Power @ 14.4V @ 1 ohm: 1 x 20000 W RMS
Power @ 14.4V @ 2 ohm: 1 x 11250 W RMS
Power @ 14.4V @ 4 ohm: 1 x 6188 W RMS
Input Sensitivity: 0.5V – 8V
Input Voltage: 9V – 16V
Frequency Response: 5Hz –500Hz
S/N Ratio: 91dB
Damping Factor: >1000
THD + N (10% Rated Power): 0.2%
Crossover HPF: 5 Hz – 30 Hz (12 dB/oct)
Crossover LPF: 50 Hz – 500 Hz (24 dB/oct)
Bass Boost: 0 – 12dB
Bass Boost Range 35Hz – 55 Hz
Current Draw (Music): 1000 A
Current Draw (Max): 2000 A
